H8 DIGITALKER & BLINKENLIGHTS BOARD BY TERRY SMEDLEY

Home

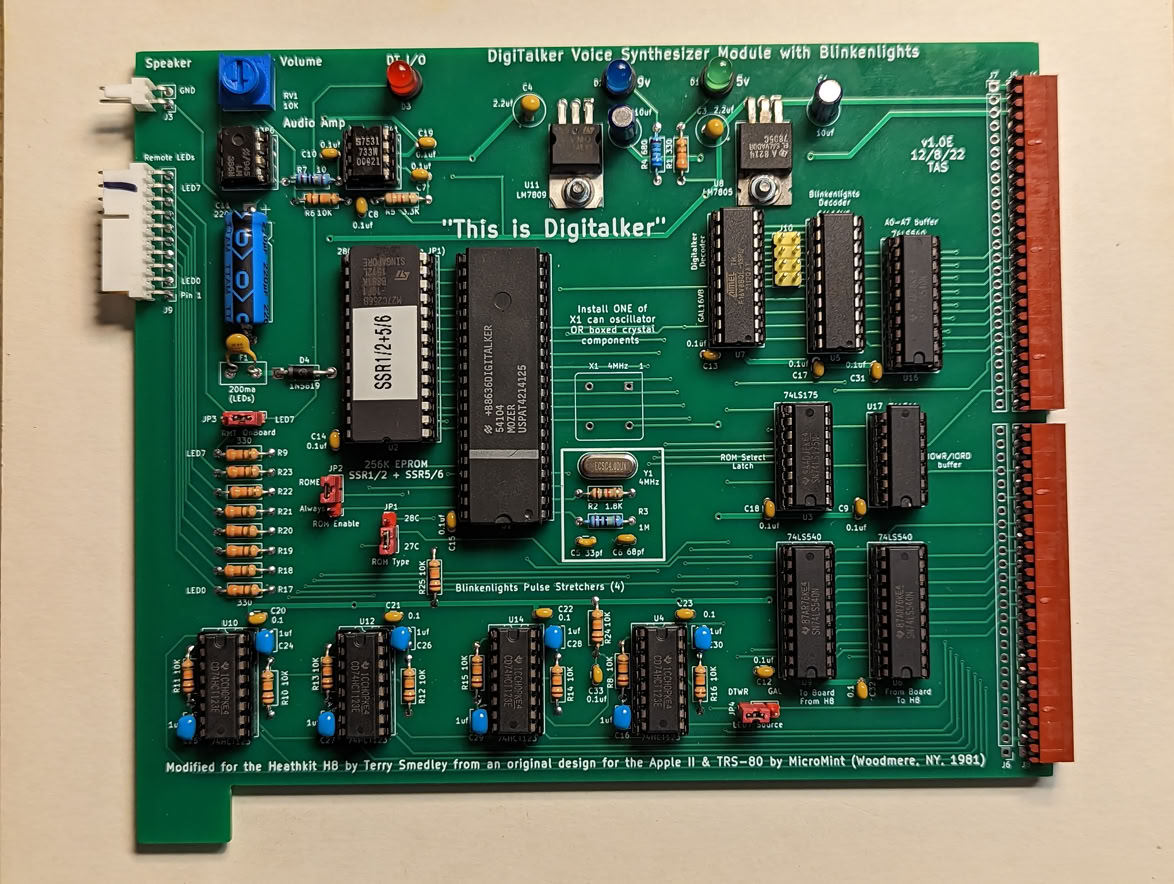

H8 DIGITALKER & BLINKENLIGHTS CONTROLLER

                             DigiTalker8_E-Assembly.pdf       Board Xray view

                             DigiTalker8E_Schematic.pdf        Schematic

                             Digitalker Vocabulary.pdf            Vocabulary found in SSR1/2 and SSR5/6 ROMs

                             DigiTalker Jumpers.pdf                 Board jumper settings

                             DigiTalker12xxx.pdf                      National Semiconductor datasheet for Digitalker with base vocabulary set (SSR1/2)

                             Digitalker56xxx.pdf                       National Semiconductor datasheet for Digitalker with expanded vocabulary set (SSR5/6)

MicroMouth.pdf                             Manual for MicroMouth DigiTalker board for the Apple II and TRS80

                             BOM_RevE.htm                             Basic bill of materials – does not contain specific vendor part numbers

                             DigiTalkerGAL.zip                        WinCUPL source for one possible GAL for the board
