Norberto’s H8 Computer
H8 8080A/Z80 64K RAM ORG0 BRD
KiCad files, Gerber files, and Schematics
8080A-64K-V1_3.rar - Gerber files
H8-64K-ORG0-8080A-Z80-RAM.rar All files.
H8-64K-8080A-ORG0-Z80-schematics.pdf - Schematics
Board BOM By Dave Runkle <drunkle@astrorat.com>
OurPCB reference No: 17081876-2 - Cathy Ma_OurPCB <sales06@ourpcb.com>
Assembly Guide by David Troendle <david@troendle.org>
H-8 8080A/Z80 RAM Boards Available: 8
H8 0KB-64KB Memory Movie

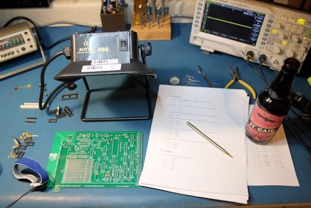

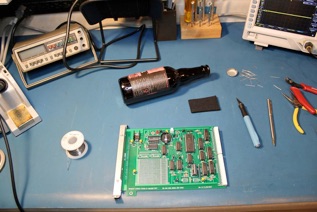

Pictures By Dave Runkle

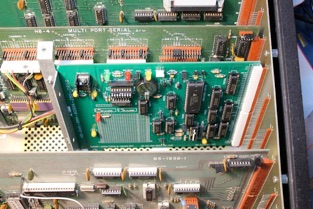

The finished board is now in the H8 and running fine. There where no issues to troubleshoot. Just configure, plug-in and the board ran the first time the power was applied. Memory tests have been run for most of the day with no issues to report.
